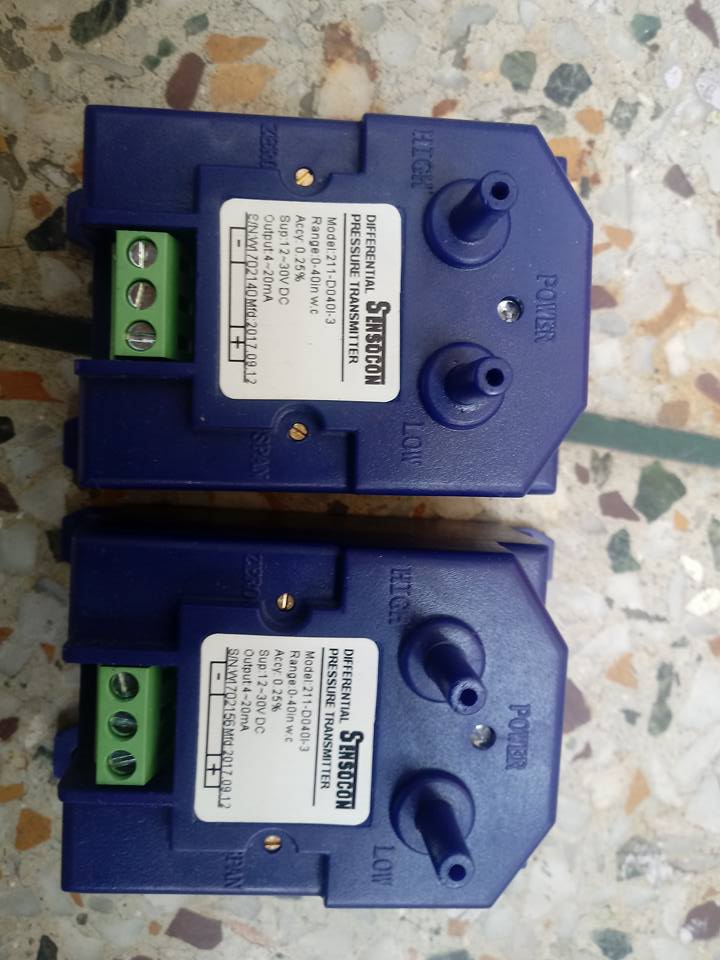

Sensocon Series 211 Differential Pressure Transmitter Roorkee Dehradun

Sensocon Series 211 Differential Pressure Transmitter Roorkee Dehradun

Envirotech

Series 211 Differential Pressure Transmitter

The Series 211 Differential Pressure Transmitter can accurately measure positive, negative, or differential pressure and send the corresponding 4-20 mA output signal. The Series 211 Differential Pressure Transmitter is not position sensitive and can be mounted in any orientation without compromising accuracy. It also features a power LED, so you always know when the transmitter is operating. The compact, lightweight design makes installation simple and easy.

Model Pressure Range Accuracy
211-D001I-1 0-1″ 1%
211-D002I-1 0-2″ 1%
211-D004I-1 0-4″ 1%
211-D006I-3 0-6″ 0.25%
211-D010I-3 0-10″ 0.25%
211-D020I-3 0-20″ 0.25%
211-D040I-3 0-40″ 0.25%
211-D005P-3 0-5 PSI 0.25%
211-D010P-3 0-10 PSI 0.25%
211-D015P-3 0-15 PSI 0.25%
211-D250A-1 0-250 Pa 1%
211-D500A-1 0-500 Pa 1%
211-D001K-1 0-1 kPa 1%
211-D002K-3 0-2 kPa 0.25%
211-D003K-3 0-3 kPa 0.25%
211-D005K-3 0-5 kPa 0.25%
211-D010K-3 0-10 kPa 0.25%
211-D025K-3 0-25 kPa 0.25%
211-D050K-3 0-50 kPa 0.25%
211-D100K-3 0-100 kPa 0.25%

*For 0-10 V output, add -V to the end of the part number. Consult factory for other calibration ranges including zero center ranges.

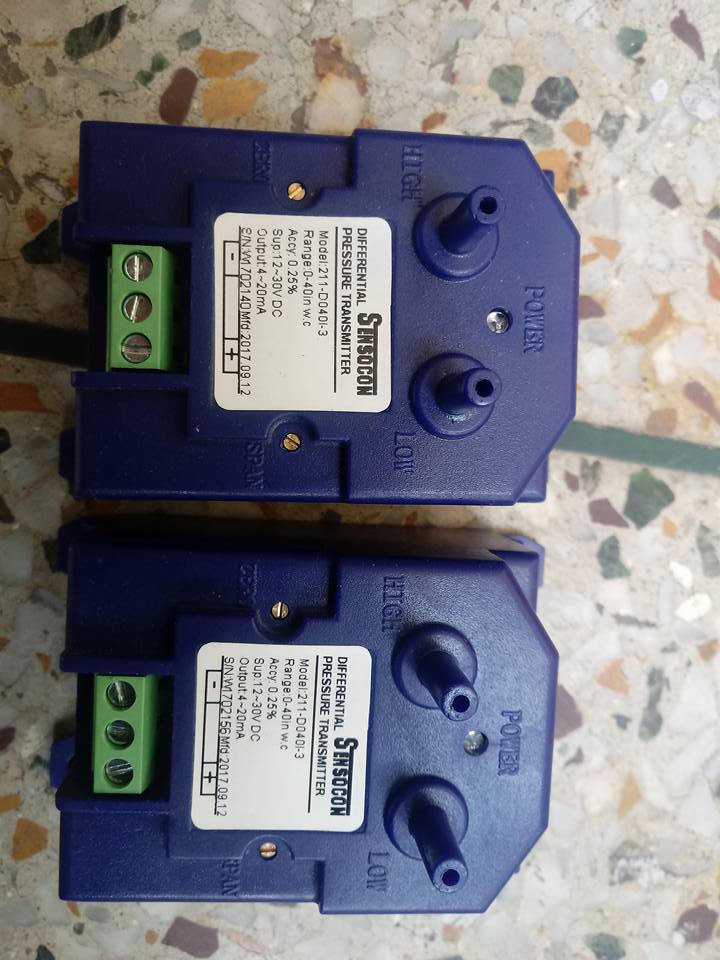

Sensocon Series 211 Differential Pressure Transmitter Solan Himachal

Sensocon Series 211 Differential Pressure Transmitter Solan Himachal

Envirotech

Series 211 Differential Pressure Transmitter

The Series 211 Differential Pressure Transmitter can accurately measure positive, negative, or differential pressure and send the corresponding 4-20 mA output signal. The Series 211 Differential Pressure Transmitter is not position sensitive and can be mounted in any orientation without compromising accuracy. It also features a power LED, so you always know when the transmitter is operating. The compact, lightweight design makes installation simple and easy.

Model Pressure Range Accuracy
211-D001I-1 0-1″ 1%
211-D002I-1 0-2″ 1%
211-D004I-1 0-4″ 1%
211-D006I-3 0-6″ 0.25%
211-D010I-3 0-10″ 0.25%
211-D020I-3 0-20″ 0.25%
211-D040I-3 0-40″ 0.25%
211-D005P-3 0-5 PSI 0.25%
211-D010P-3 0-10 PSI 0.25%
211-D015P-3 0-15 PSI 0.25%
211-D250A-1 0-250 Pa 1%
211-D500A-1 0-500 Pa 1%
211-D001K-1 0-1 kPa 1%
211-D002K-3 0-2 kPa 0.25%
211-D003K-3 0-3 kPa 0.25%
211-D005K-3 0-5 kPa 0.25%
211-D010K-3 0-10 kPa 0.25%
211-D025K-3 0-25 kPa 0.25%
211-D050K-3 0-50 kPa 0.25%
211-D100K-3 0-100 kPa 0.25%

*For 0-10 V output, add -V to the end of the part number. Consult factory for other calibration ranges including zero center ranges.

Sensocon Series 211 Differential Pressure Transmitter chandigarh

Sensocon Series 211 Differential Pressure Transmitter chandigarh

Envirotech

Series 211 Differential Pressure Transmitter

The Series 211 Differential Pressure Transmitter can accurately measure positive, negative, or differential pressure and send the corresponding 4-20 mA output signal. The Series 211 Differential Pressure Transmitter is not position sensitive and can be mounted in any orientation without compromising accuracy. It also features a power LED, so you always know when the transmitter is operating. The compact, lightweight design makes installation simple and easy.

Model Pressure Range Accuracy
211-D001I-1 0-1″ 1%
211-D002I-1 0-2″ 1%
211-D004I-1 0-4″ 1%
211-D006I-3 0-6″ 0.25%
211-D010I-3 0-10″ 0.25%
211-D020I-3 0-20″ 0.25%
211-D040I-3 0-40″ 0.25%
211-D005P-3 0-5 PSI 0.25%
211-D010P-3 0-10 PSI 0.25%
211-D015P-3 0-15 PSI 0.25%
211-D250A-1 0-250 Pa 1%
211-D500A-1 0-500 Pa 1%
211-D001K-1 0-1 kPa 1%
211-D002K-3 0-2 kPa 0.25%
211-D003K-3 0-3 kPa 0.25%
211-D005K-3 0-5 kPa 0.25%
211-D010K-3 0-10 kPa 0.25%
211-D025K-3 0-25 kPa 0.25%
211-D050K-3 0-50 kPa 0.25%
211-D100K-3 0-100 kPa 0.25%

*For 0-10 V output, add -V to the end of the part number. Consult factory for other calibration ranges including zero center ranges.

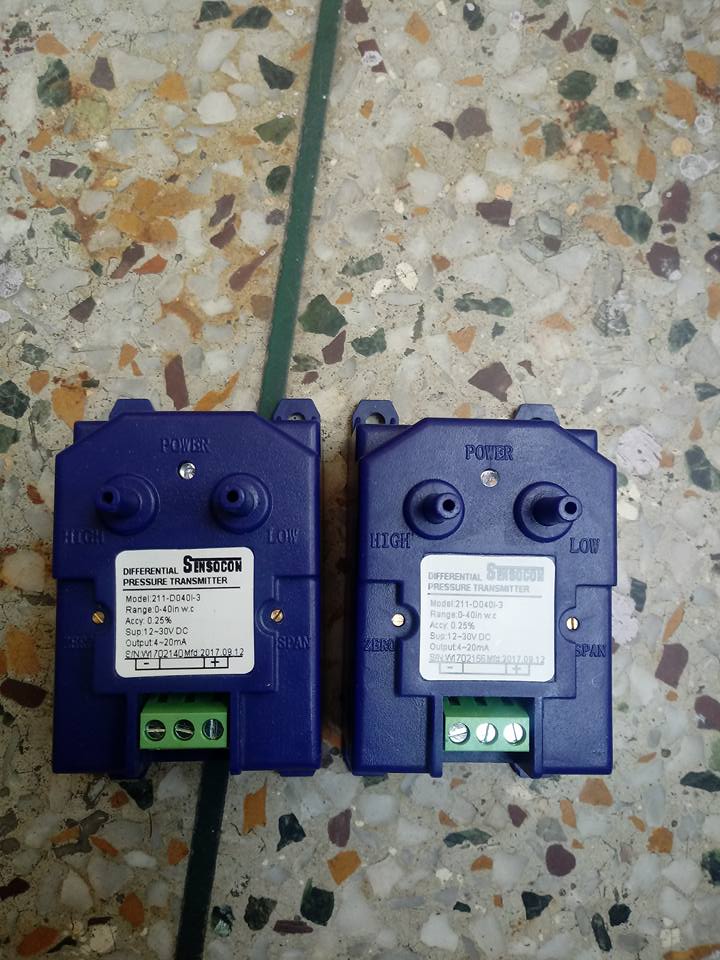

Sensocon Series 211 Differential Pressure Transmitter Gurgaon

Sensocon Series 211 Differential Pressure Transmitter Gurgaon

Envirotech

Series 211 Differential Pressure Transmitter

The Series 211 Differential Pressure Transmitter can accurately measure positive, negative, or differential pressure and send the corresponding 4-20 mA output signal. The Series 211 Differential Pressure Transmitter is not position sensitive and can be mounted in any orientation without compromising accuracy. It also features a power LED, so you always know when the transmitter is operating. The compact, lightweight design makes installation simple and easy.

Model Pressure Range Accuracy
211-D001I-1 0-1″ 1%
211-D002I-1 0-2″ 1%
211-D004I-1 0-4″ 1%
211-D006I-3 0-6″ 0.25%
211-D010I-3 0-10″ 0.25%
211-D020I-3 0-20″ 0.25%
211-D040I-3 0-40″ 0.25%
211-D005P-3 0-5 PSI 0.25%
211-D010P-3 0-10 PSI 0.25%
211-D015P-3 0-15 PSI 0.25%
211-D250A-1 0-250 Pa 1%
211-D500A-1 0-500 Pa 1%
211-D001K-1 0-1 kPa 1%
211-D002K-3 0-2 kPa 0.25%
211-D003K-3 0-3 kPa 0.25%
211-D005K-3 0-5 kPa 0.25%
211-D010K-3 0-10 kPa 0.25%
211-D025K-3 0-25 kPa 0.25%
211-D050K-3 0-50 kPa 0.25%
211-D100K-3 0-100 kPa 0.25%

*For 0-10 V output, add -V to the end of the part number. Consult factory for other calibration ranges including zero center ranges.

Sensocon Series 211 Differential Pressure Transmitter DELHI

Sensocon Series 211 Differential Pressure Transmitter DELHI

Envirotech

Series 211 Differential Pressure Transmitter

The Series 211 Differential Pressure Transmitter can accurately measure positive, negative, or differential pressure and send the corresponding 4-20 mA output signal. The Series 211 Differential Pressure Transmitter is not position sensitive and can be mounted in any orientation without compromising accuracy. It also features a power LED, so you always know when the transmitter is operating. The compact, lightweight design makes installation simple and easy.

Model Pressure Range Accuracy
211-D001I-1 0-1″ 1%
211-D002I-1 0-2″ 1%
211-D004I-1 0-4″ 1%
211-D006I-3 0-6″ 0.25%
211-D010I-3 0-10″ 0.25%
211-D020I-3 0-20″ 0.25%
211-D040I-3 0-40″ 0.25%
211-D005P-3 0-5 PSI 0.25%
211-D010P-3 0-10 PSI 0.25%
211-D015P-3 0-15 PSI 0.25%
211-D250A-1 0-250 Pa 1%
211-D500A-1 0-500 Pa 1%
211-D001K-1 0-1 kPa 1%
211-D002K-3 0-2 kPa 0.25%
211-D003K-3 0-3 kPa 0.25%
211-D005K-3 0-5 kPa 0.25%
211-D010K-3 0-10 kPa 0.25%
211-D025K-3 0-25 kPa 0.25%
211-D050K-3 0-50 kPa 0.25%
211-D100K-3 0-100 kPa 0.25%

*For 0-10 V output, add -V to the end of the part number. Consult factory for other calibration ranges including zero center ranges.

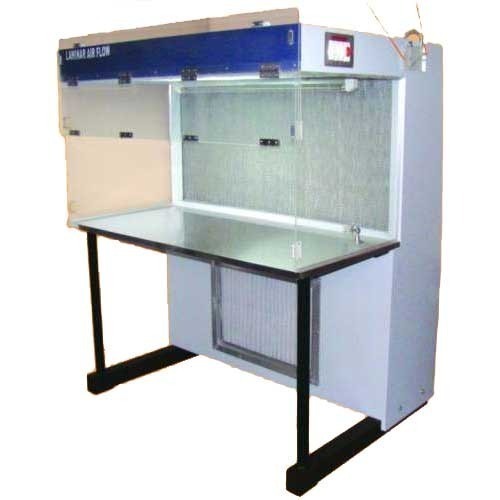

Portable Desk Laminar Air Flow

Portable Desk Laminar Air Flow

Envirotech

Portable Desk Laminar Air Flow

Portable Desk Laminar Air Flow ur range of portable desk laminar air flow is made of stainless steel table top for CRCA. It also have HEPA filters, pre filters, inbuilt UV tube attachment. Manometer: Acrylic block type Accurately calibrated LPG gas cock Specifications: Material: Stainless Steel Type: Central Bench Usage: Hospital, School, Company, Research Institute Color: Grey

Additional Information:

  • Minimum Order Quantity: 1 Number
  • Pay Mode Terms: T/T (Bank Transfer)
  • Port of Dispatch: delhi
  • Production Capacity: 9650264867
  • Delivery Time: 9871034100
  • Packaging Details: www.envirotechindustrialproduct.net
Sensocon USA SERIES 211-D100K-3 Differential Pressure Transmitter

Sensocon USA SERIES 211-D100K-3 Differential Pressure Transmitter

Envirotech

Sensocon USA SERIES 211-D100K-3 Differential Pressure Transmitter

Model –  211-D100K-3

Pressure Range – 0-100 Kpa

Accuracy – 0.25%

• Compact Design

• 0.25% Accuracy

• LED Power Indication

• 4 – 20 mA or 0 – 10 V output

The Series 211 Differential Pressure Transmitter can accurately measure positive, negative, or differential pressure and send the corresponding 4 – 20 mA output signal. The Series 211 Differential Pressure Transmitter is not position sensitive and can be mounted in any orientation without compromising accuracy. It also features a power LED, so you always know when the transmitter is operating. The compact, lightweight design makes installation simple and easy.

SPECIFICATIONS

Maximum Pressure:

Ranges ≤ 5 PSI (35 kPa) = 15 PSI (100 kPa) Max Ranges > 5 PSI (35 kPa) = 30 PSI (200 kPa) Max

Media Compatibility:

Air and compatible noncombustible, non-corrosive gasses

Accuracy:

Ranges ≤ 4″ w.c. (1 kPa) 1.0% Ranges ≥ 5″ w.c. (1.25 kPa) 0.25%

Temperature Ranges:

Compensated: 15° to 120°F (-10° to 50°C) Operating: -10° to 155°F (-25° to 70°C)

Thermal Effect:+/- 0.028% FS/°F (+/- 0.050%/°C)

Stability: +/- 0.25% FS/year

Output Signal: 4-20 mA, 2 wire or 0-10V

Loop Resistance: 250 Ω @ 24 VDC

Power Supply: 12-30 VDC

Housing Material: ABS Plastic

Electrical Connections: screw terminals

Process Connection: Push on connection for 3/16″ I.D. tubing

Agency Approvals: CE

Spot Diffuser

Spot Diffuser

Envirotech

Product Details:

Dimensions 315 MM

We offer Spot Diffusers. The Spot diffusers are widely used in HVAC Industries, where ducting are not possible such as in large Double Height Hall, Malls, Production Hall etc. These spot diffusers has an ability of setting the air throw within 40° of its installation. We offer these products at reasonable rates to our clients.

Features:

  • Finish : Powder Coated
  • Attachment : Butterfly Damper (Optional)
  • MOC : Aluminium


Specifications:

Model No. A B C D E F G H I J K
ETIP-75 95 75 115 77 20 60 35 80 20 82 40DEG
ETIP-100 130 100 147 101 25 75 54 100 30 106 39DEG
ETIP-200 230 200 250 203 45 120 100 165 40 208 42DEG
ETIP- 300 340 304 362 314 62 200 165 262 50 318 39DEG
ETIP-400 450 410 470 420 93 247 225 340 60 425 40DEG

Additional Information:

  • Pay Mode Terms: T/T (Bank Transfer)
  • Port of Dispatch: Delhi
  • Production Capacity: 9650264867
  • Delivery Time: 9871034100
  • Packaging Details: www.envirotechindustrialproducts.com
HDPE Pleated Rod Type Pre Filter

HDPE Pleated Rod Type Pre Filter

Envirotech

Product Details:

Minimum Order Quantity 12 Number
MS RODE TYPE Aluminum RODE Type
10 Micron 20 Micron
White Mesh Black Mesh

HDPE Pleated Rod Type Pre Filter

Construction: are made from high quality synthetic non-woven media, supported by a fine HDPE media on both sides. Media is then housed inside an extruded aluminium frame.

SPECIFICATION
Efficiency Standard HDPE pleated type filters have an efficiency of 90% for 10 micron size particles. Pre filters with an efficiency rating of 80 to 90% to capture 10 micron to 25 micron size particles are also available on order.
Filtration Class Filter grades G3, G4, F5 of EN779, ASHRAE 52.2 equivalent MERV 6, 7, 8, 9, 10 and Eurovent EU3, EU4 and EU5 are available
Frame Type Available in flange or box type
Frame Material Standard model is constructed in Galvanized steel. Other models with Aluminium Anodized/Stainless steel frame with or without powder coating are also available on order.
Filter Media HDPE and non-woven synthetic.
Gasket No Gasket is installed in standard filter model. Non-woven syntheti/Rubber gasket can be ordered on request
Separators None
Sealant PU based epoxy
Face Guard No face guard with standard model is supplied. On order/request filter can be protected with expanded mesh on both sides
Nominal Depth Depth size is available from 1.0 inches to 6 inches (Pre HDPE Pleated and rod type)
Sizes Standard size of the filter is 610 x 610 x 50mm in box or flange type. Other sizes are build on order.
Pressure Drop Initial pressure drop ~2.5mm WG and recommended final pressure drop is 5-10mm WG
Operating Conditions Filter can withstand temperature up to 80ºC and relative humidity of 100% at 0 condensation. Filter is washable or can be cleaned by applying air pressure and reused.
Application Athlete Pre filters are most suited for:
Air Handling Units (AHUs), Air-conditioning systems, Power Plants, Chemical and Fertilizer complexes, Green Houses, Automatic Drain Holes, Paint Shops, Textile Mills, Cement Factories, Laminar Air Flow Units, Biosafety Hoods, Fan Filter Units (FFU), Gas Turbine Industry, Compressor, Diesel Engines, Nuclear Power Station, CD-Rom Production Industry, Picture Tube Production Industry, Semi-conductor Industry, Aeronautical Industry and Miscellaneous Industrial Ventilation.

Additional Information:

  • Pay Mode Terms: T/T (Bank Transfer)
  • Port of Dispatch: DELHI
  • Production Capacity: 9650264867
  • Delivery Time: 9871034100
  • Packaging Details: www.envirotechdelhi.net
