Dwyer 616KD-03 Differential Pressure Transmitter

Dwyer 616KD-03 Differential Pressure Transmitter

Envirotech

Dwyer 616KD-03 Differential Pressure Transmitter

Models & Ordering

Filter By



2% acc, 4-20 mA



 Model Description
616KD-03 Differential pressure transmitter, 0 to 5″ w.c., 4-20 mA.

MORE ABOUT THIS ITEM

These low-cost, compact transmitters reduce up-front costs as well as expenses over the life of the product. These transmitters are ideal for building automation applications such as air handlers, duct pressure, variable air volume, and filter monitoring. With the One-Touch digital push button, both zero and span are calibrated simultaneously. Just let the unit sit at zero reference pressure, then push the button. Mounting is simple with integral mounting holes on the molded housing; unit can also be mounted on a 35-mm DIN rail. A protective cap snaps directly on to the housing to cover wiring terminals.

 Specifications & Description



Accuracy ±2% full-scale
 Min Pressure (in WC) 0
 Max Pressure (in WC)  2
 Min Temperature (° F)  32
 Max Temperature (° F) 122
 Min Temperature (° C)  0
 Max Temperature (° C)  50
 Process Connection 1/8″ and 3/16″ hose barbs
 Unit Of Measurement ” WC
Battery Type 16 to 35 VDC
 Electrical Connections Screw terminal
 Output 4 to 20 mA
Enclosure RatingNEMA 1, IP20
 Housing Polycarbonate
 Media Compatibility Air and noncombustible, compatible gases
 Description Differential Pressure Transmitter, 4 to 20 mA Output, 5 IN WC
Dwyer 616KD-02 Differential Pressure Transmitter

Dwyer 616KD-02 Differential Pressure Transmitter

Envirotech

Dwyer 616KD-02 Differential Pressure Transmitter

Models & Ordering

Filter By

2% acc, 4-20 mA



 Model Description
616KD-02 Differential pressure transmitter, 0 to 3″ w.c., 4-20 mA.

MORE ABOUT THIS ITEM

These low-cost, compact transmitters reduce up-front costs as well as expenses over the life of the product. These transmitters are ideal for building automation applications such as air handlers, duct pressure, variable air volume, and filter monitoring. With the One-Touch digital push button, both zero and span are calibrated simultaneously. Just let the unit sit at zero reference pressure, then push the button. Mounting is simple with integral mounting holes on the molded housing; unit can also be mounted on a 35-mm DIN rail. A protective cap snaps directly on to the housing to cover wiring terminals.

 Specifications & Description



Accuracy ±2% full-scale
 Min Pressure (in WC) 0
 Max Pressure (in WC)  2
 Min Temperature (° F)  32
 Max Temperature (° F) 122
 Min Temperature (° C)  0
 Max Temperature (° C)  50
 Process Connection 1/8″ and 3/16″ hose barbs
 Unit Of Measurement ” WC
Battery Type 16 to 35 VDC
 Electrical Connections Screw terminal
 Output 4 to 20 mA
Enclosure RatingNEMA 1, IP20
 Housing Polycarbonate
 Media Compatibility Air and noncombustible, compatible gases
 Description Differential Pressure Transmitter, 4 to 20 mA Output, 3 IN WC
Dwyer 616KD-01 Differential Pressure Transmitter

Dwyer 616KD-01 Differential Pressure Transmitter

Envirotech

Dwyer 616KD-01 Differential Pressure Transmitter

Models & Ordering

Filter By

2% acc, 4-20 mA



 Model Description
616KD-01 Differential pressure transmitter, 0 to 2″ w.c., 4-20 mA.

MORE ABOUT THIS ITEM

These low-cost, compact transmitters reduce up-front costs as well as expenses over the life of the product. These transmitters are ideal for building automation applications such as air handlers, duct pressure, variable air volume, and filter monitoring. With the One-Touch digital push button, both zero and span are calibrated simultaneously. Just let the unit sit at zero reference pressure, then push the button. Mounting is simple with integral mounting holes on the molded housing; unit can also be mounted on a 35-mm DIN rail. A protective cap snaps directly on to the housing to cover wiring terminals.

 Specifications & Description

Accuracy ±2% full-scale
 Min Pressure (in WC) 0
 Max Pressure (in WC)  2
 Min Temperature (° F)  32
 Max Temperature (° F) 122
 Min Temperature (° C)  0
 Max Temperature (° C)  50
 Process Connection 1/8″ and 3/16″ hose barbs
 Unit Of Measurement ” WC
Battery Type 16 to 35 VDC
 Electrical Connections Screw terminal
 Output 4 to 20 mA
Enclosure RatingNEMA 1, IP20
 Housing Polycarbonate
 Media Compatibility Air and noncombustible, compatible gases
 Description Differential Pressure Transmitter, 4 to 20 mA Output, 2 IN WC
Dwyer 616KD-00 Differential Pressure Transmitter

Dwyer 616KD-00 Differential Pressure Transmitter

Envirotech

Dwyer 616KD-00 Differential Pressure Transmitter

Models & Ordering

Filter By

2% acc, 4-20 mA



 Model Description
616KD-00 Differential pressure transmitter, 0 to 1″ w.c., 4-20 mA.

Dwyer 616KD Series Offers

Features

  • No additional reference pressure sources and separate calibration devices are necessary
  • Back mounting tabs are integral to the molded housing
  • Easy-to-wire open screw terminals at the top of the housing

Dwyer 616KD Series Specifications

 Service Air and non-combustible, compatible gases
 Accuracy ±2% FS
Stability ±1% FS/year
 Temperature Range 32 to 122°F (0 to 50°C)
 Pressure Range 2 psi (13.8 kPa)
 Thermal Effect on Span ±0.11% FS/°F (±0.19% FS/°C) typ
Thermal Effect on Zero 616KD-X0: 0.6%/°F (1%/°C)

616KD-X1: 0.3%/°F (0.5%/°C)

616KD-X2: 0.2%/°F (0.33%/°C)

616KD-X3: 0.12%/°F (0.2%/°C)

616KD-X4: 0.06%/°F (0.1%/°C) FS max
 Power Supply 16 to 35 VDC (2 or 3 wire), 20 to 28 VAC (3 wire)
Zero & Span Adjustments Push button
 Loop Resistance DC: 1000 Ω max
AC: 1200 Ω max
 Current Consumption 21 mA max
 Electrical Connections Screw-type terminal block
 Process Connections Barbed, dual size to fit 1/8″ & 3/16″ (3 mm & 5 mm) ID rubber or vinyl tubing
 Mounting Orientation Position insensitive
 Weight 1.8 oz (51 g)
Series 616KD Differential Pressure Transmitter

Series 616KD Differential Pressure Transmitter

Envirotech

Series 616KD Differential Pressure Transmitter

One-Touch® Digital Push-Button Calibration Technology, ±0.25, ±1, or ±2% Accuracy

The SERIES 616KD Differential Pressure Transmitters with One-Touch® Digital Push- Button Calibration Technology are designed for simplicity, making them the ideal choice for installers and maintenance professionals. These instruments not only alleviate cumbersome turn pots typically found in most transmitters, but eliminate entirely the need to span the instruments during calibration. With a single digital push button, both ZERO AND SPAN are calibrated properly, nothing else is required. No additional reference pressure sources or separate calibration devices are necessary.

Product Applications

  • Air handlers
  • Duct pressure
  • Variable air volume
  • Filter monitoring



Models & Ordering

Filter By

2% acc, 4-20 mA

 Model Description
616KD-00 Differential pressure transmitter, 0 to 1″ w.c., 4-20 mA.
 616KD-01 Differential pressure transmitter, 0 to 2″ w.c., 4-20 mA.
 616KD-02 Differential pressure transmitter, 0 to 3″ w.c., 4-20 mA.
 616KD-03 Differential pressure transmitter, 0 to 5″ w.c., 4-20 mA.
 616KD-04 Differential pressure transmitter, 0 to 10″ w.c., 4-20 mA.
 616KD-05 Differential pressure transmitter, 0 to 15″ w.c., 4-20 mA.
 616KD-06  Differential pressure transmitter, 0 to 20″ w.c., 4-20 mA.
616KD-07  Differential pressure transmitter, 0 to 25″ w.c., 4-20 mA.
 616KD-10 Differential pressure transmitter, 0 to 250 Pa, 4-20 mA.
 616KD-11  Differential pressure transmitter, 0 to 500 Pa, 4-20 mA.
 616KD-12 Differential pressure transmitter, 0 to 750 Pa, 4-20 mA.
 616KD-13 Differential pressure transmitter, 0 to 1250 Pa, 4-20 mA.
 616KD-14  Differential pressure transmitter, 0 to 2500 Pa, 4-20 mA.
 616KD-15  Differential pressure transmitter, 0 to 5000 Pa, 4-20 mA.



Dwyer 616KD-00-V Differential Pressure Transmitter

Dwyer 616KD-00-V Differential Pressure Transmitter

Envirotech
Dwyer 616KD-00-V Differential Pressure Transmitter
Product Code : Dwyer 616KD-00-V
Brand Name : DWYER USA
Price And Quantity
  • Minimum Order Quantity
  • 12
  • Unit of Measure
  • Piece/Pieces
  • Price
  • 6500 INR
Product Description

Dwyer  616KD-00-V Differential Pressure Transmitter

616KD-00-V | Dwyer Instruments | Pressure

DPT, R: 0 TO 1 IN W.C., 0-5 OR 0-10VDC FIELD SELEC

Manufacturer: Dwyer Instruments

MPN: 616KD-00-V

SKU: 616KD-00-V

Specifications

 Accuracy ±2% Full Scale
 Output Signal 4-20 mA or unit with field selectable 0-10V or 0-5V
 Process Connection  Barbed, dual size to fit 1/8″ and 3/16″ (0.32 and 0.5 cm) ID rubber or vinyl tubing
 Power Requirements 16 to 35 VDC (2 or 3 wire), 20 to 28 VAC (3 wire)
 Operating Pressure 2 psi (13.8 kPa)
 Operating Temperature 32° to 122℉ (0° to 50℃)
 Thermal Effect on Span ±0.11% FS/℉ (±0.19% FS/℃) typical
 Thermal Effect on Zero
 616KD-X0 0.6%/℉ (1%/℃)
 616KD-X1 0.3%/℉ (0.5%/℃)
 616KD-X2 0.2%/℉ (0.33%/℃)
 616KD-X3 0.12%/℉ (0.2%/℃)
 616KD-X4 0.06%/℉ (0.1%/℃) FS max.
 Zero and Span Adjustments Push button
 Loop Resistance DC=1000Ω max.; AC=1200Ω max
 Current Consumption 21 mA max.
 Electrical Connections Screw-type terminal block
 Enclosure Rating NEMA1 (IP20)
Media Compatibility Air and non-combustible, compatible gases
Mounting Orientation Position insensitive
 Stability ±1% FS/year
Approvals CE, RoHS
 Weight 0.11 lb (0.05 kg)
Warranty 1 year


Product Family Features

  • One-Touch® technology for zero and span calibration
  • Easy to install and maintenance
  • Open screw terminals for easy wiring
  • DIN mount housing

More Information & Related Documents

Family Description

The 616KD Series Differential Pressure Transmitters with One-Touch® technology are cost-effective, compact transmitters that reduce up front costs as well as expenses over the life of the product. The transmitter not only alleviates cumbersome turn pots typically found in most transmitters, but eliminate entirely the need to span the instrument during calibration. With a single digital push button, both ZERO AND SPAN are calibrated properly, nothing else is required. No additional reference pressure sources and separate calibration devices are necessary; no need to remove from service and send to a lab. All that is required of the installer or user is to let the unit sit at zero reference pressure, then push a button. That is it! The transmitter is now ready for operation. Time savings are enormous over the life of the product compared to traditional transmitters which require time to annually remove the product from service plus the additional time to actually perform a complete full-span calibration.

 ENVIRO TECH INDUSTRIAL PRODUCTS
 Description  DPT, R: 0 TO 1 IN W.C., 0-5 OR 0-10VDC FIELD SELEC

Manufacturer

Dwyer Instruments

Dwyer 616KD-04 Differential Pressure Transmitter

Dwyer 616KD-04 Differential Pressure Transmitter

Envirotech

Dwyer 616KD-04 Differential Pressure Transmitter

Models & Ordering

Filter By



2% acc, 4-20 mA



 Model Description
616KD-04 Differential pressure transmitter, 0 to 10″ w.c., 4-20 mA.

MORE ABOUT THIS ITEM

These low-cost, compact transmitters reduce up-front costs as well as expenses over the life of the product. These transmitters are ideal for building automation applications such as air handlers, duct pressure, variable air volume, and filter monitoring. With the One-Touch digital push button, both zero and span are calibrated simultaneously. Just let the unit sit at zero reference pressure, then push the button. Mounting is simple with integral mounting holes on the molded housing; unit can also be mounted on a 35-mm DIN rail. A protective cap snaps directly on to the housing to cover wiring terminals.

 Specifications & Description



Accuracy ±2% full-scale
 Min Pressure (in WC) 0
 Max Pressure (in WC)  2
 Min Temperature (° F)  32
 Max Temperature (° F) 122
 Min Temperature (° C)  0
 Max Temperature (° C)  50
 Process Connection 1/8″ and 3/16″ hose barbs
 Unit Of Measurement ” WC
Battery Type 16 to 35 VDC
 Electrical Connections Screw terminal
 Output 4 to 20 mA
Enclosure RatingNEMA 1, IP20
 Housing Polycarbonate
 Media Compatibility Air and noncombustible, compatible gases
 Description Differential Pressure Transmitter, 4 to 20 mA Output, 10 IN WC

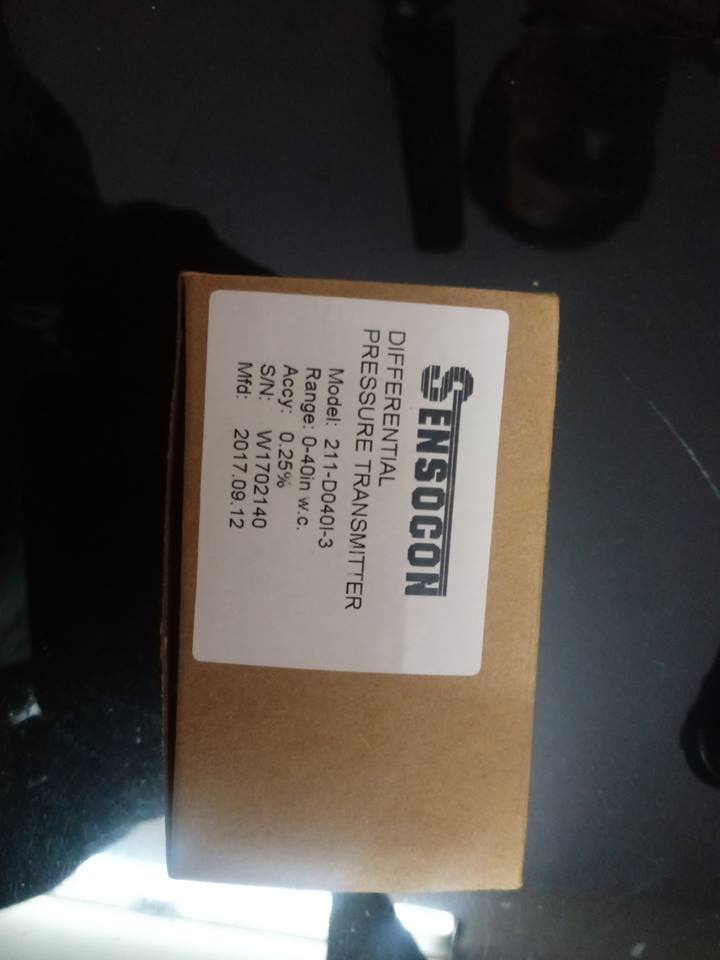

Sensocon Series 211 Differential Pressure Transmitter Manesar

Sensocon Series 211 Differential Pressure Transmitter Manesar

Envirotech

Series 211 Differential Pressure Transmitter

The Series 211 Differential Pressure Transmitter can accurately measure positive, negative, or differential pressure and send the corresponding 4-20 mA output signal. The Series 211 Differential Pressure Transmitter is not position sensitive and can be mounted in any orientation without compromising accuracy. It also features a power LED, so you always know when the transmitter is operating. The compact, lightweight design makes installation simple and easy.

Model Pressure Range Accuracy
211-D001I-1 0-1″ 1%
211-D002I-1 0-2″ 1%
211-D004I-1 0-4″ 1%
211-D006I-3 0-6″ 0.25%
211-D010I-3 0-10″ 0.25%
211-D020I-3 0-20″ 0.25%
211-D040I-3 0-40″ 0.25%
211-D005P-3 0-5 PSI 0.25%
211-D010P-3 0-10 PSI 0.25%
211-D015P-3 0-15 PSI 0.25%
211-D250A-1 0-250 Pa 1%
211-D500A-1 0-500 Pa 1%
211-D001K-1 0-1 kPa 1%
211-D002K-3 0-2 kPa 0.25%
211-D003K-3 0-3 kPa 0.25%
211-D005K-3 0-5 kPa 0.25%
211-D010K-3 0-10 kPa 0.25%
211-D025K-3 0-25 kPa 0.25%
211-D050K-3 0-50 kPa 0.25%
211-D100K-3 0-100 kPa 0.25%

*For 0-10 V output, add -V to the end of the part number. Consult factory for other calibration ranges including zero center ranges.

Sensocon Series 211 Differential Pressure Transmitter Rudrapur Uttarakhand India.

Sensocon Series 211 Differential Pressure Transmitter Rudrapur Uttarakhand India.

Envirotech

Series 211 Differential Pressure Transmitter

The Series 211 Differential Pressure Transmitter can accurately measure positive, negative, or differential pressure and send the corresponding 4-20 mA output signal. The Series 211 Differential Pressure Transmitter is not position sensitive and can be mounted in any orientation without compromising accuracy. It also features a power LED, so you always know when the transmitter is operating. The compact, lightweight design makes installation simple and easy.

Model Pressure Range Accuracy
211-D001I-1 0-1″ 1%
211-D002I-1 0-2″ 1%
211-D004I-1 0-4″ 1%
211-D006I-3 0-6″ 0.25%
211-D010I-3 0-10″ 0.25%
211-D020I-3 0-20″ 0.25%
211-D040I-3 0-40″ 0.25%
211-D005P-3 0-5 PSI 0.25%
211-D010P-3 0-10 PSI 0.25%
211-D015P-3 0-15 PSI 0.25%
211-D250A-1 0-250 Pa 1%
211-D500A-1 0-500 Pa 1%
211-D001K-1 0-1 kPa 1%
211-D002K-3 0-2 kPa 0.25%
211-D003K-3 0-3 kPa 0.25%
211-D005K-3 0-5 kPa 0.25%
211-D010K-3 0-10 kPa 0.25%
211-D025K-3 0-25 kPa 0.25%
211-D050K-3 0-50 kPa 0.25%
211-D100K-3 0-100 kPa 0.25%

*For 0-10 V output, add -V to the end of the part number. Consult factory for other calibration ranges including zero center ranges.

Sensocon Series 211 Differential Pressure Transmitter Haridwar

Sensocon Series 211 Differential Pressure Transmitter Haridwar

Envirotech

Series 211 Differential Pressure Transmitter

The Series 211 Differential Pressure Transmitter can accurately measure positive, negative, or differential pressure and send the corresponding 4-20 mA output signal. The Series 211 Differential Pressure Transmitter is not position sensitive and can be mounted in any orientation without compromising accuracy. It also features a power LED, so you always know when the transmitter is operating. The compact, lightweight design makes installation simple and easy.

Model Pressure Range Accuracy
211-D001I-1 0-1″ 1%
211-D002I-1 0-2″ 1%
211-D004I-1 0-4″ 1%
211-D006I-3 0-6″ 0.25%
211-D010I-3 0-10″ 0.25%
211-D020I-3 0-20″ 0.25%
211-D040I-3 0-40″ 0.25%
211-D005P-3 0-5 PSI 0.25%
211-D010P-3 0-10 PSI 0.25%
211-D015P-3 0-15 PSI 0.25%
211-D250A-1 0-250 Pa 1%
211-D500A-1 0-500 Pa 1%
211-D001K-1 0-1 kPa 1%
211-D002K-3 0-2 kPa 0.25%
211-D003K-3 0-3 kPa 0.25%
211-D005K-3 0-5 kPa 0.25%
211-D010K-3 0-10 kPa 0.25%
211-D025K-3 0-25 kPa 0.25%
211-D050K-3 0-50 kPa 0.25%
211-D100K-3 0-100 kPa 0.25%

*For 0-10 V output, add -V to the end of the part number. Consult factory for other calibration ranges including zero center ranges.
